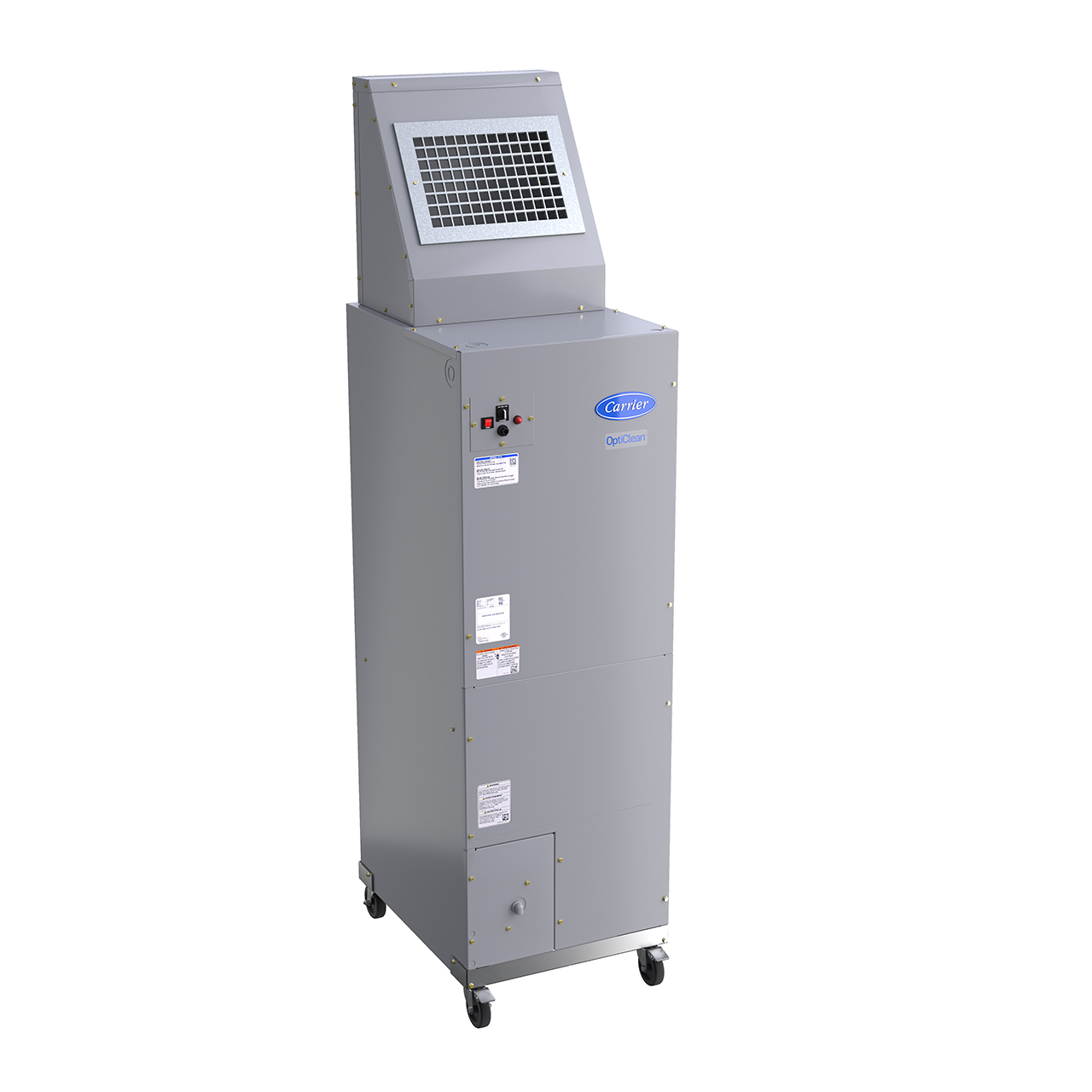

Carrier® OptiClean™ negative air pressure & air scrubbing machine

The Carrier OptiClean negative air machine is a portable, maximum 600 CFM or maximum 1500 CFM solution primarily designed to help convert normal hospital rooms into airborne infectious isolation rooms (AIIR). Designed to comply with ASHRAE’s Standard 170 for Ventilation of Health Care Facilities, the Carrier OptiClean unit uses a 99.97% efficient filter and a heavy duty, yet quiet, motor to remove filtered contaminated air from the room. The resulting negative air pressure, or “vacuum effect,” helps limit the spread of airborne contaminants into surrounding areas. If negative pressure is not required, such as an open-air, temporary hospital, retail space, dental office or residence, the machine can be used as an air scrubber, pulling air in, removing many contaminants, and discharging cleaner air back into the space.

Product Highlights
- Negative air machine for hospital isolation rooms
- 99.97% efficient HEPA Filter with MERV 7 prefilter
- Base Level Model - 600 CFM (FN1AAF006000)
- Enhanced Model - 1,500 CFM (FN1AAF015000)
The Carrier OptiClean™ can be operated in two modes

Air Scrubber — uses 99.97% efficient, long-life (~40,000 hour) HEPA filters to remove particles as small as 0.3 microns, then discharge cleaner air back into the room. Ideal for a wide range of commercial applications, including K–12 classrooms and open-air, temporary medical facilities.

Negative Air Machine — helps convert normal hospital rooms into negative-pressure airborne infectious isolation rooms (AIIR) by adding a vacuum effect to the HEPA filtration capability. Designed to ASHRAE Standard 170 for Ventilation of Health Care Facilities.

The units can be operate either vertically or horizontally in both modes.
Product Features
- 99.97% efficient, long-life HEPA filter removes particles as small as 0.3 microns
- Standard MERV 7 or higher pre-filter
- Minimum 600 CFM, maximum 1500 CFM
- Meets or exceeds the ASHRAE Standard 170: Ventilation of Health Care Facilities
- HEPA filter rack and sealing design meet air leakage requirement
- Vertical design for smaller footprint vs. many competitors. Can be mounted and operated horizontally when necessary
- Portable and adaptable to nearly any appropriately-sized location
- Heavy-duty, lockable casters for easy transport
- Red lighted indicator to alert user when filters are overloaded (generally means pre-filter requires replacement)
- Green on/off switch illuminates to verify when running
- 3-second motor start delay
- 3-speed selector switch on 015 size model for various air flow ranges
- Ten-foot long power cord with strain relief
- Exhaust transition plate to standard 10-inch round (005 size) or 12-inch oval (015 size) duct included
- Galvanized steel, pre-painted cabinet is fully insulated
- 115V
- UL® listed
- One-year limited warranty
Additional Product Details

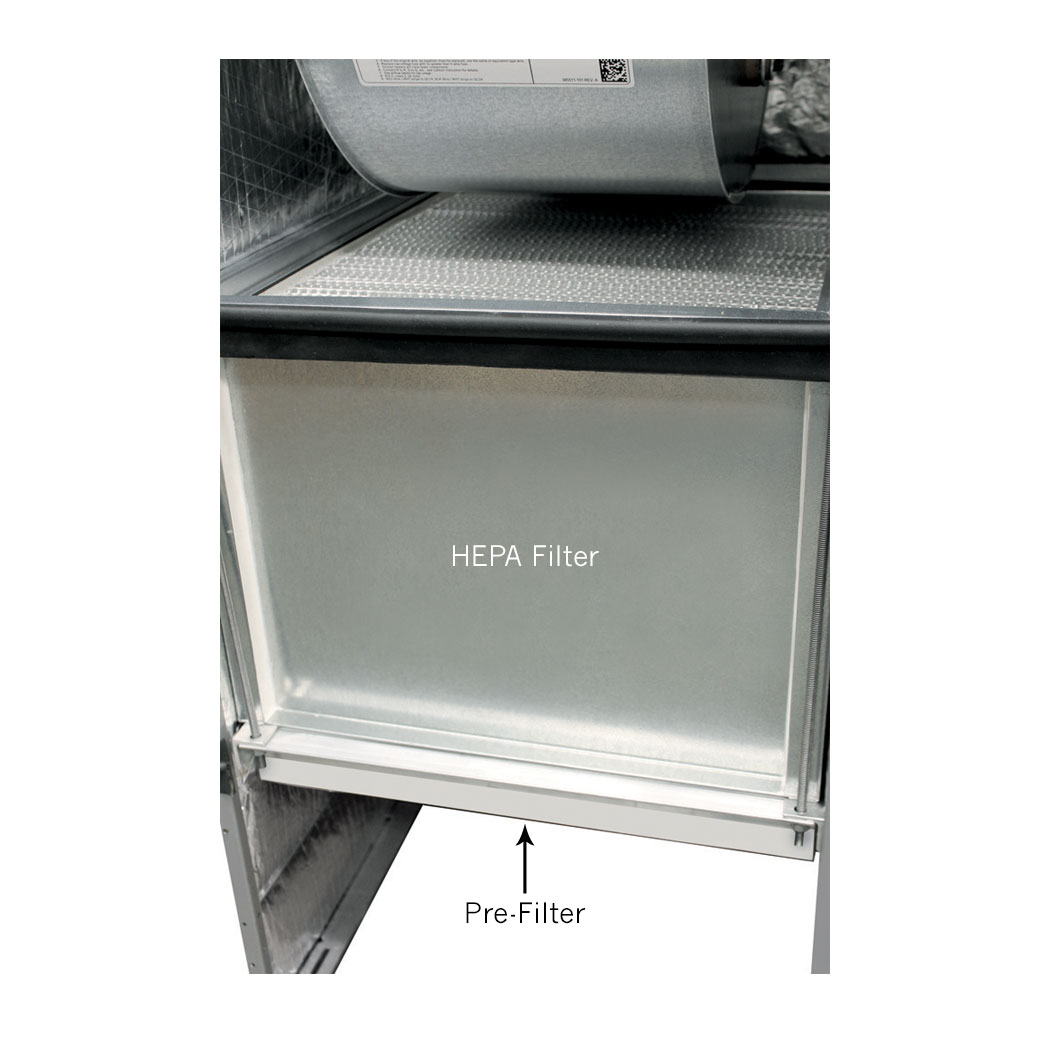

Pre-Installed Filters

The Carrier OptiClean™ ships with two filters pre-installed for your convenience: a minimum MERV 7 pre-filter and a HEPA filter
- The minimum MERV 7 pre-filter recommended replacement is 60-90 days and should be available locally*
- The long-life HEPA filter provides approximately 40,000 hours of operation, or four years, under normal operation and maintenance*

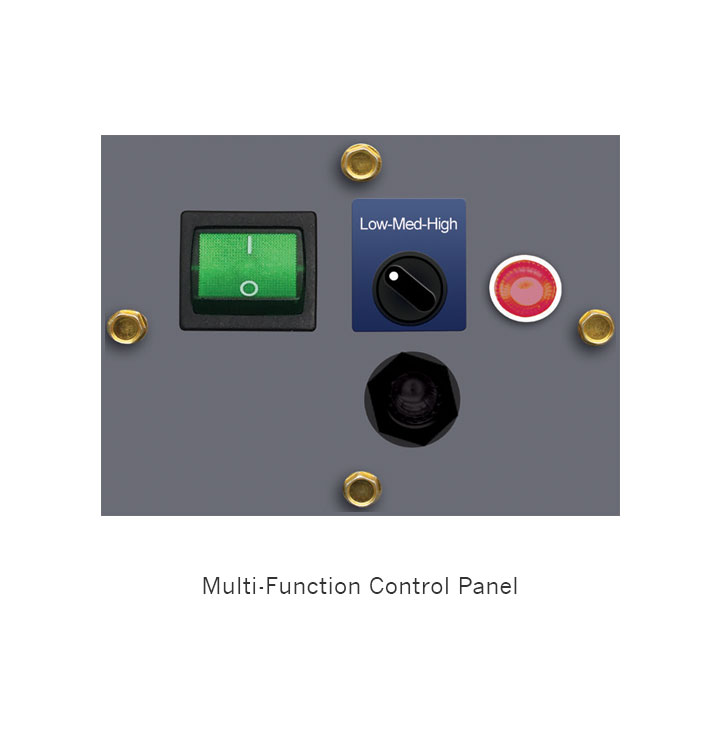

Filter Alert/Pressure Indicator
- A red light illuminates when it is time to check and/or replace one or both of the unit’s filters
- A green on/off switch illuminates when the unit is on and operating
Some Assembly Required

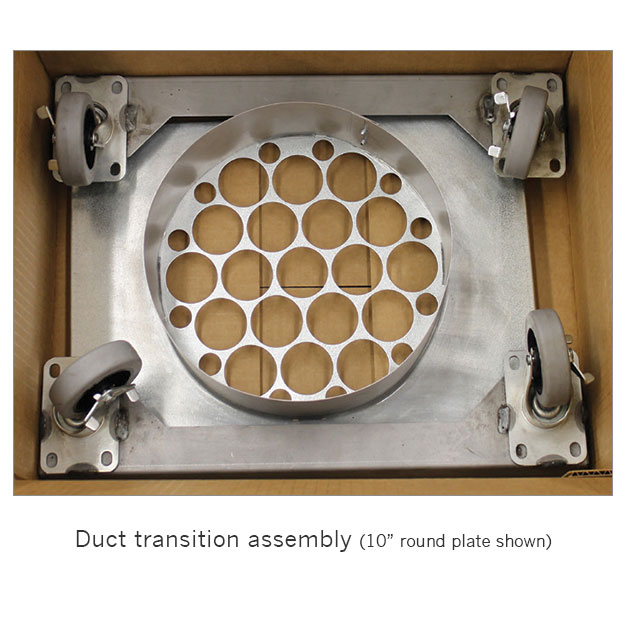

- Locking casters and round duct transition assembly are shipped with every unit
- Check with your equipment distributor for details
Limited Warranty
- The Carrier OptiClean is covered by a one-year parts limited warranty. See limited warranty certificate for complete details and restrictions.
*Applies to negative air machine applications only. Filter life in air scrubber applications would be reduced.
